Data Release

Upper Florida Keys 1930s-2002 Seafloor Elevation Stability Models, Maps, and Tables

By Kelly A. Murphy¹ and Kimberly K. Yates²

¹ Student Contractor contracted to the U.S. Geological Survey
² U.S. Geological Survey

Summary

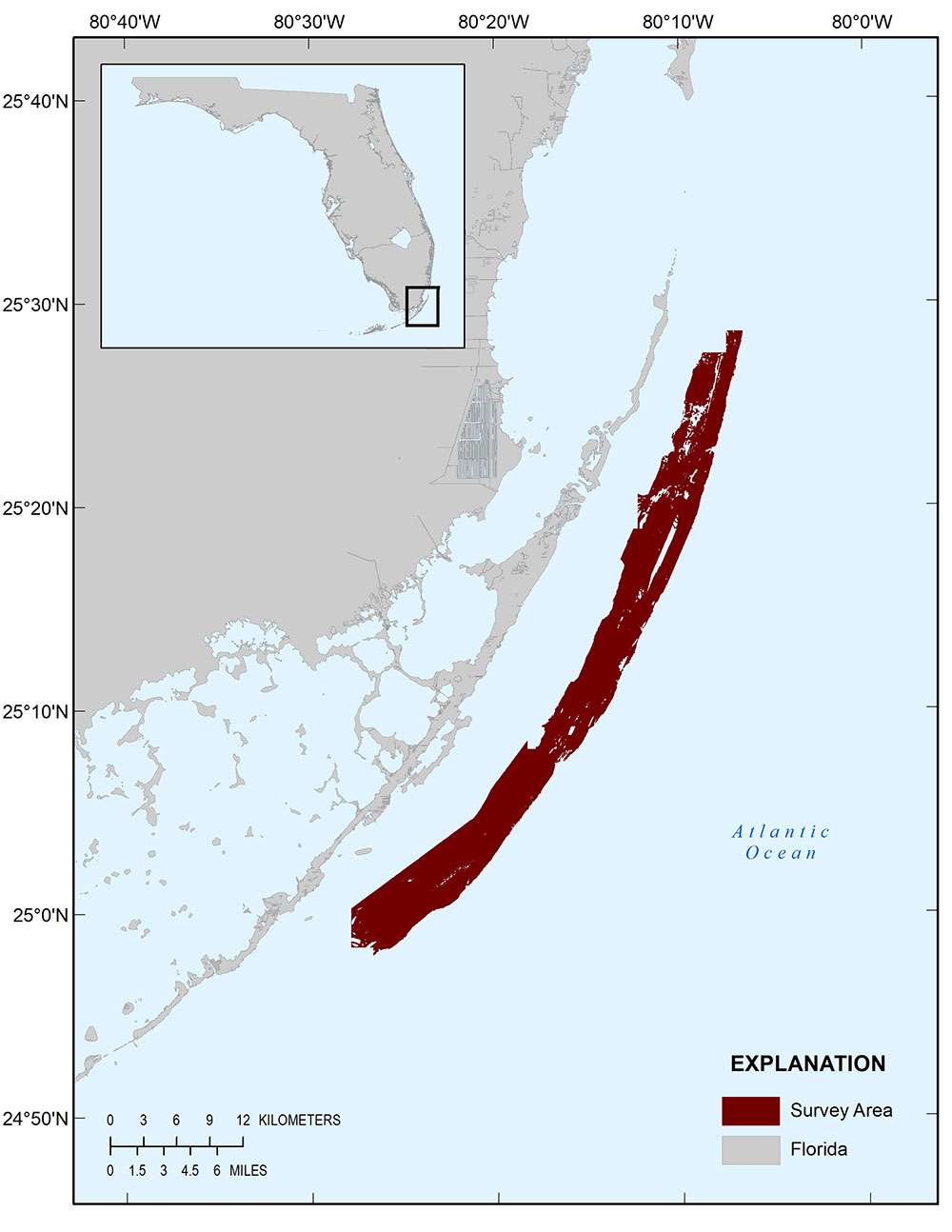

The U.S. Geological Survey (USGS) St. Petersburg Coastal and Marine Science Center (SPCMSC) conducted research to identify areas of seafloor elevation stability and instability based on elevation changes between the 1930s and 2002 in the Upper Florida Keys (UFK) from Triumph Reef to Pickles Reef within a 234.2 square-kilometer area. USGS SPCMSC staff used seafloor elevation-change data from Yates and others (2017a) derived from an elevation-change analysis between two elevation datasets acquired in the 1930s and 2001/2002 using the methods of Yates and others (2017b). Most of the elevation data from the 2001/2002 time period were collected during 2002, so as an abbreviated naming convention, we refer to this time period as 2002. A seafloor stability threshold was determined for the 1930s–2002 UFK elevation-change dataset based on the vertical uncertainty of the 1930s historical hydrographic surveys and 2002 digital elevation models (DEMs). Five stability categories (which include, Stable: 0.0 meters (m) to ±0.24 m or 0.0 m to ±0.49 m; Moderately stable: ±0.25 m to ±0.49 m; Moderately unstable: ±0.50 m to ±0.74 m; Mostly unstable: ±0.75 m to ±0.99 m; and Unstable: ±1.00 m to Max/Min elevation change) were created and used to define levels of stability and instability for each elevation-change value (25,982 data points) based on the amount of erosion and accretion during the 1930s to 2002 time period. Seafloor-stability point and triangulated irregular network (TIN) surface models were created at five different elevation-change data resolutions (1^st order through 5^th order) with each resolution becoming increasingly more detailed. The stability models were used to determine the level of seafloor stability at potential areas of interest for coral restoration and 13 habitat types found in the UFK. Stability surface (TIN) models were used for areas defined by specific XY geographic points, while stability point models were used for areas defined by bounding box coordinate locations.

This data release includes ArcGIS map packages containing the binned and color-coded stability point and surface (TIN) models, potential coral restoration locations, and habitat files; maps of each stability model; and data tables containing stability and elevation-change data for the potential coral restoration locations and habitat types. Data were collected under Florida Keys National Marine Sanctuary permit FKNMS-2016-068.

Yates, K.K., Zawada, D.G., Smiley, N.A., Tiling-Range, G., and Resnick, J.P., 2017a, Seafloor elevation change in Maui, St. Croix, St. Thomas, and the Florida Keys: U.S. Geological Survey data release, https://doi.org/10.5066/F7WQ01W0.

Yates, K.K., Zawada, D.G., Smiley, N.A., and Tiling-Range, G., 2017b, Divergence of seafloor elevation and sea level rise in coral reef ecosystems: Biogeosciences, v. 14, p. 1739–1772, https://doi.org/10.5194/bg-14-1739-2017.

Data

Suggested Citation

Murphy, K.A. and Yates, K.K., 2021, Upper Florida Keys 1930s-2002 seafloor elevation stability models, maps, and tables: U.S. Geological Survey data release, https://doi.org/10.5066/P9AIOVFW.
