Data Release
Ground Penetrating Radar Data and Elevation-Corrected Profiles Collected in 2021 From Central Florida Gulf Coast Barrier Islands
By Arnell S. Forde, Julie C. Bernier, Noreen A. Buster, Daniel J. Ciarletta, and Jennifer L. Miselis
U.S. Geological Survey, St. Petersburg, Florida
Summary
In 2021, scientists from the USGS St. Petersburg Coastal and Marine Science Center (SPCMSC) conducted ground penetrating radar (GPR) and sediment sampling surveys on barrier islands located along the central Florida (FL) Gulf Coast (CFGC), Pinellas County, FL. This study investigated the past evolution of the CFGC from field sites at Anclote Key, Caladesi and Honeymoon Islands, and Fort DeSoto to quantify changes that occurred along these barrier systems prior to the 20th century.
This data release serves as an archive of raw and processed GPR trace data, processed elevation-corrected profile images, and geospatial data collected from back-barrier environments at Anclote Key, Caladesi Island, Honeymoon Island, Cabbage Key, Mullet Key, and St. Jean Key from February 17–March 8, 2021 (USGS Field Activity Number 2021-308-FA). Sediment data collected during the same survey will be made available as a separate data release. GPR data can be used to map shallow subsurface sediments such as erosional surfaces or washover deposits and can also be used to image deeper stratigraphic features that may aid in linking terrestrial geology to nearshore and offshore geologic features. This dataset was used to support analyses provided in Ciarletta and others (2023) and will also be used to calibrate a model of barrier island development, quantifying historic sediment fluxes within the Pinellas barrier island system. Data acquisition and processing methods are described in USGS Data Series 1078 (Forde and others, 2018).
Ciarletta, D.J., Miselis, J.L., Bernier, J.C., Forde, A.S., and Mahan, S.A., 2023, Reconstructing the geomorphic evolution and sediment budget history of a dynamic barrier island: Anclote Key, Florida, in Wang, P., Royer, E., and Rosati, J.D., (eds.), Proceedings of the Coastal Sediments 2023, New Orleans, Louisiana, April 11-15, 2023: World Scientific Publishing, p. 1-11, https://doi.org/10.1142/9789811275135_0001.
Forde, A.S., Bernier, J.C., and Miselis, J.L., 2018, Ground penetrating radar and differential global positioning system data collected in April 2016 from Fire Island, New York: U.S. Geological Survey Data Series 1078, https://doi.org/10.3133/ds1078.
Data
| File Name and Description | Metadata (XML format) | Metadata (text format) | Download File |
|---|---|---|---|
| 2021-308-FA_gpr_traces.zip Unprocessed digital GPR trace data (.asc) |
2021-308-FA_GPR_metadata.xml | 2021-308-FA_GPR_metadata.txt | 2021-308-FA_gpr_traces.zip (5.08 GB) |
| 2021-308-FA_RADAN.zip Processed digital GPR trace data (.dzt, .dzx) |
Same as above | Same as above | 2021-308-FA_RADAN.zip (1.2 GB) |
| 2021-308-FA_profile_images.zip Processed elevation-corrected subsurface profile images (.jpg) |
Same as above | Same as above | 2021-308-FA_profile_images.zip (89.4 MB) |
| 2021-308-FA_GGA.zip Post-processed GPS data (.gga) |
Same as above | Same as above | 2021-308-FA_GGA.zip (810 KB) |
| 2021-308-FA_tracklines.zip GPR tracklines and location maps (.shp, .kmz, .jpg) |
Same as above | Same as above | 2021-308-FA_tracklines.zip (10.5 MB) |
| 2021-308-FA_profile_parameters.zip Individual GPR profile parameters (.csv, .xlsx) |
Same as above | Same as above | 2021-308-FA_profile_parameters.zip (73 KB) |

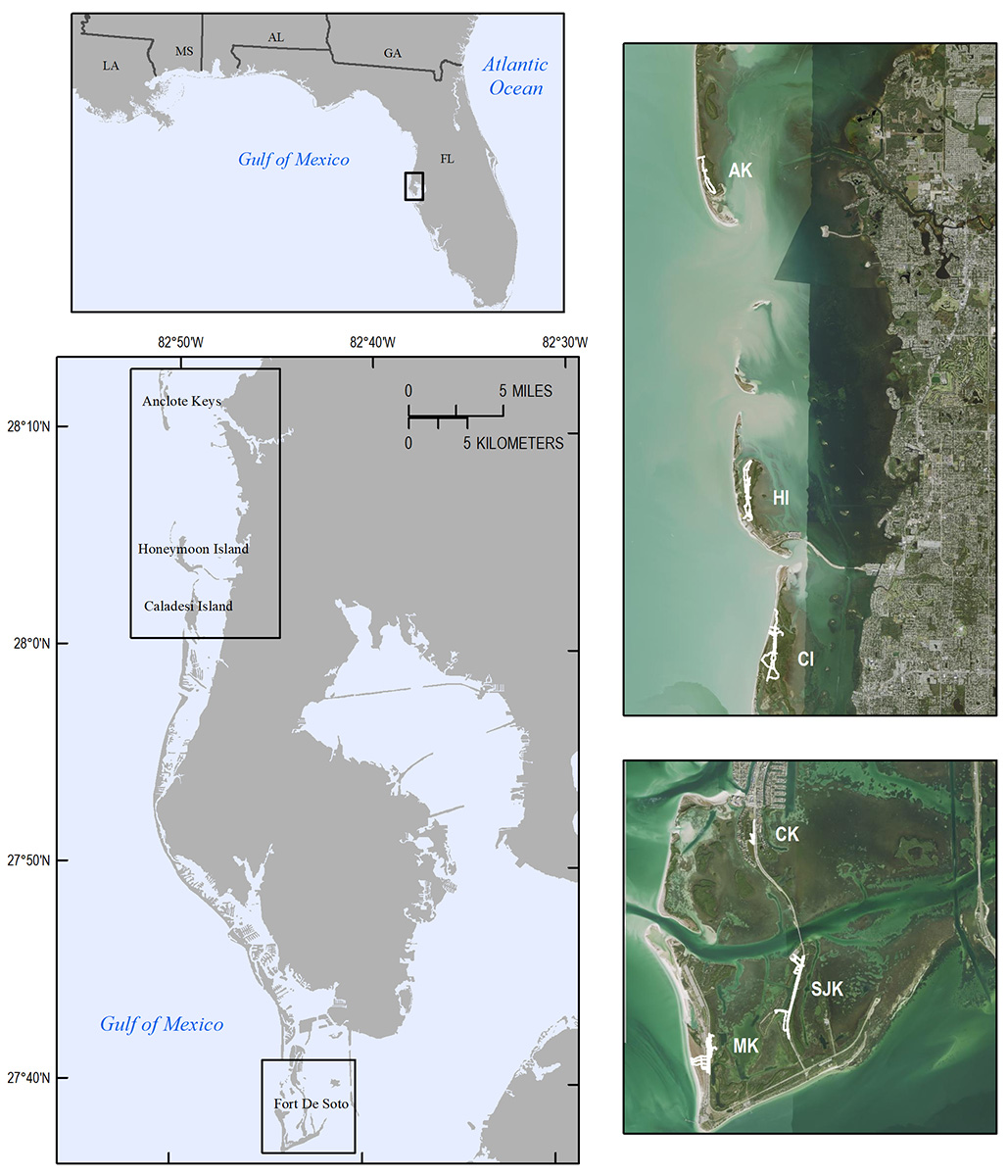

Figure 1. Regional map showing the 2021 Central Florida Gulf Coast study areas. Inset maps show [top right] Anclote Key (AK), Honeymoon Island (HI), and Caladesi Island (CI) and [bottom right] Cabbage Key (CK), St. Jean Key (SJK), and Mullet Key (MK) GPR tracklines overlaid on 2021 National Agriculture Imagery Program (NAIP) aerial imagery basemap.
Suggested Citation
Forde, A.S., Bernier, J.C., Buster, N.A., Ciarletta, D.J., and Miselis, J.L., 2024, Ground penetrating radar data and elevation-corrected profiles collected in 2021 from central Florida Gulf Coast barrier islands: U.S. Geological Survey data release, https://doi.org/10.5066/P9NV5NAP.
